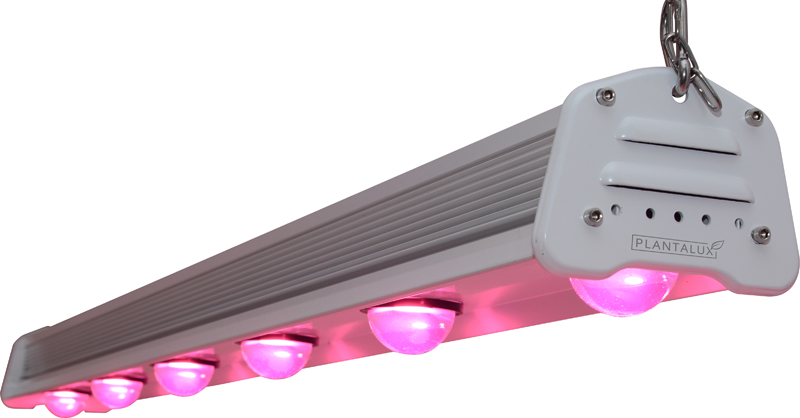

Horticulture LED COB lamp Plantalux EX300W

  • case made of aluminium

  • lamp dimensions: 160/ 135/ 1650 mm

  • total power: 300W

  • Power Factor: 0,98

  • ingress protection: IP66

  • lamp equipped with LED light source made in COB technology

  • light source lifespan up to 100 000 hours (11 years of constant lighting)

  • beam angle: 60°/ 90°/ 120°

  • modular structure – each element of the fixture can be replaced independently

  • passive heat dissipation

  • basic warranty: 5 years

Plantalux Strong Red – LED COB of significantly high total red to blue ratio (87:13). What is worth mentioning is very high far red percentage that equals 20% of the entire spectrum. Such composition of wavelengths lets achieve satisfactory effects especially in terms of cultivation of vegetables, fruits and blooming flowers.

Range [nm] 400 – 700
(PAR)
700 – 800
(far red)
600 – 700
(red)
500 – 600
(green)
400 – 500
(blue)
380 – 400
(UV)
Share 80% 20% 65% 3% 12% 0%

Plantalux Double Blue – LED COB of distinctly broader range of blue colour in the total spectrum. Such effect could be achieved by developing wavelength of double peak within 400 – 500 nm. Due to that this diode we changed total red to blue ratio for the benefit of blue (75:25). Such mixture lets promote early stage of plant life especially in vegetative phase. Appropriate mixture of wavelengths led to create light suitable both for plants and human eyes – the CCT of this diode is approximately 5500 K.

Range [nm] 400 – 700
(PAR)
700 – 800
(far red)
600 – 700
(red)
500 – 600
(green)
400 – 500
(blue)
380 – 400
(UV)
Share 85% 15% 52% 12% 22% 0%

Plantalux Leafy – LED COB designed and developed under supervision of experienced leafy greens growers and international horticulture consulting company. Due to balanced ratio of various wavelengths and far red at 6% leafy greens are not only healthy but keep shel life freshness much longer.

Range [nm] 400 – 700
(PAR)
700 – 800
(far red)
600 – 700
(red)
500 – 600
(green)
400 – 500
(blue)
380 – 400
(UV)
Share 94% 6% 64% 16% 15% 0%

Plantalux Full Spectrum – LED COB of very broad spectrum including additional 10% of far red. Created to fulfill balanced growth and at the same time being pleasant for human eyes. Useful especially in cultivation with limited access to natural light or its complete absence like in vertical and indoor farms.

Range [nm] 400 – 700
(PAR)
700 – 800
(far red)
600 – 700
(red)
500 – 600
(green)
400 – 500
(blue)
380 – 400
(UV)
Share 90% 10% 38% 37% 15% 0%

Illuminated area

Below table shows photon illuminated area depending on the distance from the lamp. The set demonstrates clearly the difference between lens of beam angles 60°, 90° and 120°.

Height 60 degrees 90 degrees 120 degrees
1 m 1,05 m² 3,14 m² 9,42 m²
2 m 4,19 m² 12,57 m² 37,70 m²
3 m 9,42 m² 28,27 m² 84,82 m²
4 m 16,76 m² 50,27 m² 150,80 m²
5 m 26,18 m² 78,54 m² 235,62 m²
