Plantalux EX240W2018-06-04T23:33:00+00:00

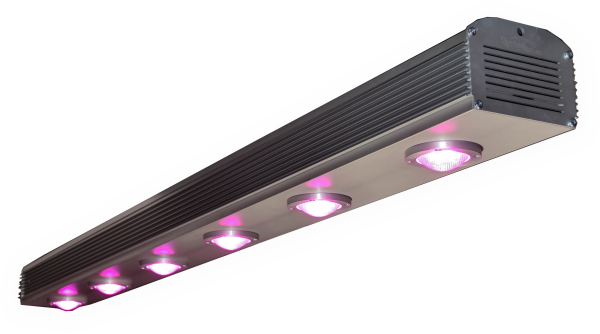

Horticulture LED COB lamp Plantalux EX240W

  • case made of aluminium

  • lamp length: 1505mm

  • total power: 240W

  • Power Factor: 0,98

  • index of protection: IP66

  • lamp equipped with LED light source made in COB technology

  • light source lifespan up to 125 000 hours (14 years of constant lighting)

  • beam angle: 60°/ 90°/ 120°

  • modular structure – each element of the fixture can be replaced independently

  • active and passive heat dissipation

  • basic warranty: 7 years

  • light source warranty: 8 years

Light spectrum

Plantalux Strong Red – LED COB of significantly high total red to blue ratio (87:13). What is worth mentioning is very high far red percentage that equals 20% of the entire spectrum. Such composition of wavelengths lets achieve satisfactory effects especially in terms of cultivation of vegetables, fruits and blooming flowers.

Range [nm] 400 – 700
(PAR)
700 – 800
(far red)
600 – 700
(red)
500 – 600
(green)
400 – 500
(blue)
380 – 400
(UV)
Share 80% 20% 65% 3% 12% 0%

Plantalux Double Blue – LED COB of distinctly broader range of blue colour in the total spectrum. Such effect could be achieved by developing wavelength of double peak within 400 – 500 nm. Due to that this diode we changed total red to blue ratio for the benefit of blue (75:25). Such mixture lets promote early stage of plant life especially in vegetative phase. Appropriate mixture of wavelengths led to create light suitable both for plants and human eyes – the CCT of this diode is approximately 5500 K.

Range [nm] 400 – 700
(PAR)
700 – 800
(far red)
600 – 700
(red)
500 – 600
(green)
400 – 500
(blue)
380 – 400
(UV)
Share 85% 15% 52% 12% 22% 0%

Citizen – LED COB of proven positive impact on plant growth. It was developed and manufacture by Citizen Electronics – a well-known Japanese manufacturer of COB and SMD LED. Due to good red to blue ratio (82:12) it lets you achieve better effects in greenhouse cultivation. Independent tests conducted by different research entities demonstrated it’s high effectiveness.

Range [nm] 400 – 700
(PAR)
700 – 800
(far red)
600 – 700
(red)
500 – 600
(green)
400 – 500
(blue)
380 – 400
(UV)
Share 90% 10% 62% 12% 16% 0%

Illuminated area

Below table shows photon illuminated area depending on the distance from the lamp. The set demonstrates clearly the difference between lens of beam angles 60°, 90° and 120°.

Height 60 degrees 90 degrees 120 degrees
1 m 1,05 m² 3,14 m² 9,42 m²
2 m 4,19 m² 12,57 m² 37,70 m²
3 m 9,42 m² 28,27 m² 84,82 m²
4 m 16,76 m² 50,27 m² 150,80 m²
5 m 26,18 m² 78,54 m² 235,62 m²
